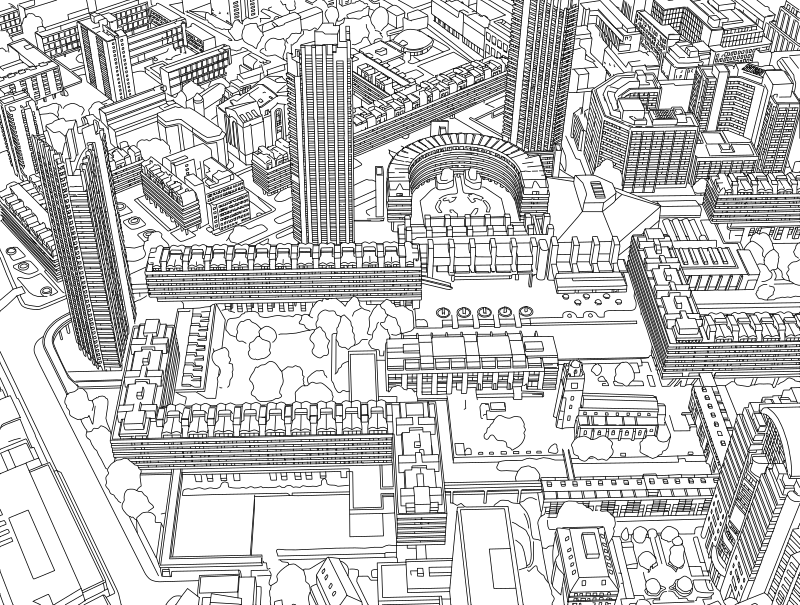

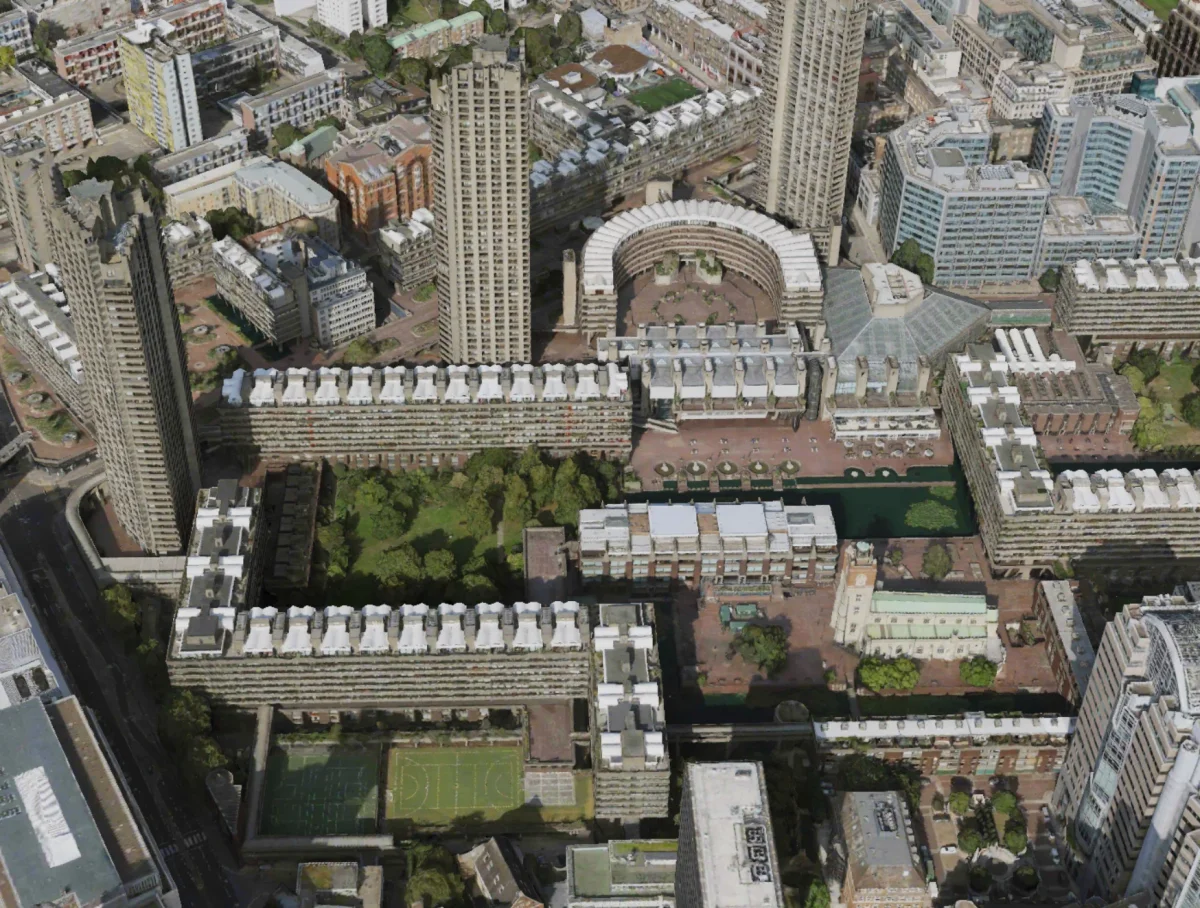

The Barbican Estate in the City of London, a Grade II listed Brutalist residential complex completed in 1982 and designed by Chamberlin, Powell and Bon. The aerial line work captures the curved Barbican Centre lakeside terrace, the three landmark residential towers, the long parallel slab blocks with their distinctive sawtooth rooflines, and the surrounding estate courtyard layout. DXF, SVG, and PDF formats are included, ready for architectural scale models, facade and elevation studies, and real estate closing gifts.
Includes DXF, SVG and PDF formats
100% free for personal and commercial use. No attribution required. Sign in with your email to download.
Works with Glowforge, xTool, LightBurn, AutoCAD, Fusion 360, Inkscape and more.
Upload any image and get a production-ready vector file in minutes
Create Your Own Drawing for FreeThis Barbican Estate London Aerial DXF and SVG file is production-ready and compatible with all major CNC machines including CO2 laser cutters, diode lasers, fiber lasers, CNC routers, plasma cutters, waterjet cutters, vinyl cutters, and cutter plotters. Works with Glowforge, xTool, Epilog, OMTech, Thunder Laser, Boss Laser, Ortur, Atomstack, Snapmaker, Cricut, Silhouette, Roland, Graphtec, Hypertherm, PrimeWeld, and all other machines that accept standard DXF or SVG vector formats.
Adobe Illustrator, CorelDRAW, Inkscape, AutoCAD, Fusion 360, SketchUp, Rhino, LightBurn, VCarve Pro, Aspire, Carbide Create, Easel, LaserGRBL, Mach 4, LinuxCNC, SheetCam, PlasmaCAM, CamBam, Cricut Design Space, Silhouette Studio, Sure Cuts A Lot, and most other vector editing or CAM software.
Wood, plywood, MDF, bamboo, cork, acrylic, foam, metal, mild steel, stainless steel, aluminum, brass, copper, leather, paper, cardstock, cardboard, vinyl, fabric, and most other materials supported by your cutting machine. Files are fully editable and can be scaled to any dimension to suit your project.
